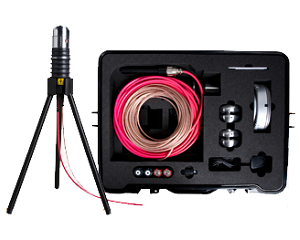

HV Diagnostics TD30 Tan Delta Test System
  • Features & specifications

  • Designed for use with HVA34 VLF & DC Hipot Tester
  • Diagnose MV Cables according to IEEE400 and 400.2
  • Suitable for testing 25kV cables and below
  • TD control center Software and FW upgrades
  • Wireless Bluetooth Connection
  • Local LED indication for TD value range
  • Accurate 1E-5 Resolution
  • Excellent, easy to use TD reporting
  • Supplied in rugged transport case with all accessories

Technical Specifications
Power Supply 2 C-type batteries
Rated Operating Voltage 1 to 23kVrms
33kV peak
Voltage measurement Resolution: 0.1kV
Accuracy: 1% of reading
Current measurement Resolution: 1 μA
Accuracy: 1% of reading
Frequency measurement Range: 0.01 to 0.1 Hz
Resolution: 0.01 Hz
Tan Delta / Dissipation Factor Measurement Resolution: 1 x 10-5
Accuracy > 15nF: ±1 x 10-4
Accuracy < 15nF: ±3 x 10-4
Minimum Load 5nF
Weight 7 lbs/3 kgs
Dimensions (9.5 x 3.5) inches/ 240mm x 85mm
Computer interface Bluetooth™
Accessories included Integrated HV and Grouding Cable
Bluetooth USB Dongle
TD Control Center Software
Operating Manual
Corona Protection
