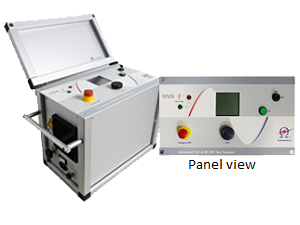

HV Diagnostics HVA34 VLF and DC Hipot Tester
  • Features & specifications

  • Designed 25kV rated cables as per IEEE400.2
  • Use with TD30 Test System for Tan Delta analysis
  • Rugged and portable instrument at only 44 lbs
  • VLF output: 24kVrms/34kVpk. DC output: ±34kV
  • Sinewave/Squarewave & DC output
  • Auto & Manual Test Sequences
  • Real time oscilloscope display
  • Computer interface via Bluetooth or USB
  • Vacuum Bottle testing mode
  • Cable Jacket / Sheath testing
  • Software for professional reporting and setup

Technical Specifications
Power Supply/Input Voltage 110 to 240V AC ±10% (50/60Hz)
Input Power Requirements 400 VA
Rated Max Output Voltage Sinusoidal RMS/Peak: 24kV/34kV
Squarewave: 34kV
DC: ±34kV
Rated Max Output Current Sinusoidal RMS: 10mA
DC/Squarewave: 14.5mA
Output Frequency (default 0.1Hz) 0.01Hz to 0.1Hz adjustable small increment of 0.01Hz (10 frequencies)
Frequency Optimization Yes
Maximum Output Load Capability @ maximum voltage and frequency 0.5μF
5,000 ft (3km)
Metering Voltage: 0.1kV Resolution ±1% Accuracy
Current: 1 μA Resolution ±1% Accuracy
Capacitance: 0.1 nF to 20 μF Range
Resistance: 0.1MΩ to 5GΩ Range
Timing: Included and integrated
Fast Arc/Flashover: Detection Included and Integrated
Waveform: Real time oscilloscope display of actual output voltage waveform
Output Mode (all load independent & symmetrical): VLF AC Sinewave
VLF AC Squarewave
DC (both Positive and Negative Polarity)
Fault Condition Mode / Fault Trip Mode
Vacuum Bottle Test Mode (DC) - optional
Cable Jacket / Sheath Test Mode
Output Duty Continuous
Computer Interface RS-232 Standard, USB Flash Memory Download Module (optional)
HVA Contol Center Software included with every HVA instrument
Memory / Test Record Storage Built in Memory: 50 Test Records
USB Flash Drive: Unlimited
No. of programmable Automatic Test Sequences 40
Standard HV Test Lead Cable Included 13ft/4m
Weight 44 lbs/20kg
Dimensions (17 x 14 x 10)in, (430 x 360 x 250)mm
Environmental Storage: -13°F to 158°F / -25°C to 70°C
Operating: 23°F to 113°F / -5°C to +45°C
Humidity: 85% RH non-condensing
