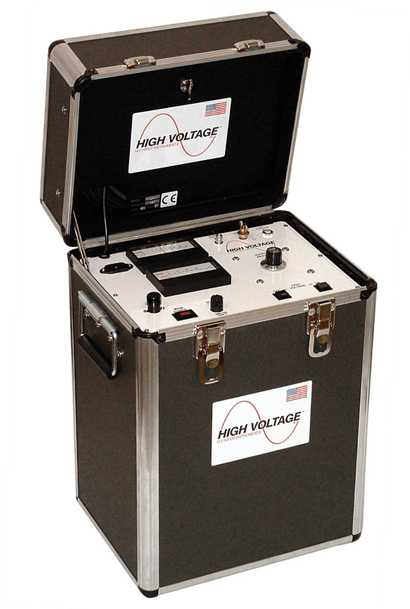

High Voltage model VLF-28CM AC Hipot Tester

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up to make sure that your testing is going smoothly!

High Voltage model VLF-28CM AC Hipot Tester
  • Features & specifications

  • 28kV AC Hipot Tester
  • Contained in a single case 15" w x 11.5" d x 22" h, 75 lbs.
  • Input: (CM suffix): 120V, 60Hz, 5A peak, 2.5A average
  • Input: (F suffix): 230V, 50/60Hz, 2.5A peak, 1.5A average
  • Output is 0 to 28kVac, peak, frequency 0.1 Hz, sinusoidal
  • Voltmeter: -30kVac to +30 kVac peak
  • Charging Current meter: 0 to 50 mA peak
  • Shielded output cable: 20 feet (6m)
  • Shipping weight is 100 lbs.

Specifications
Input 120 volts, 60 Hz, 5 A peak, 2.5 A average
or 230 volts, 50/60 Hz, 3 A peak
Output 0 to 30 kVac peak, 0.1 Hz, sinusoidal
Duty Continuous
Load rating 0.4 μF
HV Cable Output Shielded EPR output cable - 20 ft. (6 m)
Size & Weight 15"W x 11.5"D x 22"H, 82 lbs.
381 mm W x 292 mm D x 559 mm H, 39 kg
