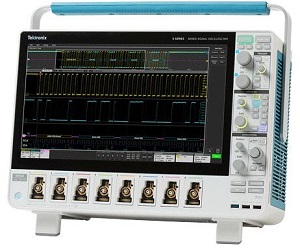

Tektronix MSO54 Series Mixed Signal Oscilloscope
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- Useful applications of the Tektronix MSO54 Series Mixed Signal Oscilloscope include (but are not limited to) embedded serial bus analysis, automotive serial bus analysis, jitter analysis, power quality and harmonics analysis, and integrity of power rails on boards.
Key features
- Large high definition touchscreen display
- Capacitive pinch-zoom-swipe touchscreen
- Measure one analog or eight digital signals
- 4 FlexChannel™ inputs
- Independent acquisition controls for each domain
| Technical characteristics | |
| FlexChannel Inputs | 4 |
| Maximum analog channels | 4 |
| Maximum digital channels (with optional logic probes) |
32 |
| Bandwidth (calculated rise time)) | 350 MHz (1.15 ns), 500 MHz (800 ps), 1 GHz (400 ps), 2 GHz (225ps) |
| DC Gain accuracy < 2 GHz models (50 Ω) |
± 1.0%, (± 2.0% at ≤ 1 mV/div) ± 0.5% of full scale, (± 1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) |
| DC Gain accuracy < 2 GHz models (1 MΩ) |
± 1.0%, (± 2.0% at ≤ 1 mV/div) ± 0.5% of full scale, (± 1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) |
| DC Gain accuracy 2 GHz models (50 Ω) |
± 1.2%, (± 2.0% at ≤ 1 mV/div) ± 0.6% of full scale, (± 1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) |
| DC Gain accuracy 2 GHz models (1 MΩ) |
± 1.0%, (± 2.0% at ≤ 1 mV/div) ± 0.5% of full scale, (± 1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) |
| ADC Resolution | 12 bits |
| Vertical Resolution | 8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤ 125 MS/s (High Res) |
| Sample rate | 6.25 GS/s on all analog / digital channels (160 ps resolution) |
| Record Length (std.) | 62.5 Mpoints on all analog / digital channels |
| Record Length (opt.) | 125 Mpoints on all analog / digital channels |
| Waveform Capture Rate | > 500,000 wfms/s |
| Arbitrary/Function Generator (opt.) | 13 predefined waveform types with up to 50 MHz output |
| Display | |
| Display type | 15.6 in. (395 mm) liquid-crystal TFT color display |
| Display resolution | 1,920 horizontal x 1,080 vertical pixels (High Definition) |
| Display modes | Overlay: traditional oscilloscope display where traces overlay each other Stacked: display mode where each waveform is placed in its own slice and can take advantage of the full ADC range while still being visually separated from other waveforms. Groups of channels can also be overlaid within a slice to simplify visual comparison of signals. |
| Zoom | Horizontal and vertical zooming is supported in all waveform and plot views. |
| Interpolation | Sin(x)/x and Linear |
| Waveform styles | Vectors, dots, variable persistence, and infinite persistence |
| Graticules | Movable and fixed graticules, selectable between Grid, Time, Full, and None |
| Color palettes | Normal and inverted for screen captures Individual waveform colors are user-selectable |
| Format | YT, XY, and XYZ |
| General specifications | |
| Temperature | Operating: 0 %C to +50 %C Non-operating: -20 %C to +60 %C |
| Humidity | Operating: 5% to 90% relative humidity (% RH) at up to +40 °C 5% to 55% RH above +40 °C up to +50 °C, noncondensing, and as limited by a maximum wet-bulb temperature of +39 °C Non operating: 5% to 90% relative humidity (% RH) at up to +40 °C 5% to 39% RH above +40 °C up to +50 °C, noncondensing, and as limited by a maximum wet-bulb temperature of +39 °C |
| Altitude | Operating: Up to 3,000 meters (9,843 feet) Non-operating: Up to 12,000 meters (39,370 feet) |
| Source voltage | 100 to 240 V ± 10% at 50 Hz to 60 Hz 115 V ± 10% at 400 Hz ± 10% |
| Power consumption | 400 Watts maximum |
| Dimensions | Height: 12.2 in (309 mm) Width: 17.9 in (454 mm) Depth: 11.7 in (297.2 mm) |
| Weight | < 25 lbs (11.4 kg) |
| Regulatory | CE marked for the European Union and UL approved for the USA and Canada RoHS compliant |
| For detailed specifications please see: Tektronix MSO 54 Series Data Sheet | |
