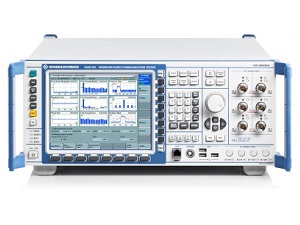

Rohde & Schwarz CMW500 Radio Communications Tester
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Rohde & Schwarz CMW500 Production Test is a compact solution for fast and precise production testing of current and future wireless devices from basic mobile phones to the most sophisticated PDAs.
Key Features
- Vector signal generator (VSG) for expanded receiver testing
- Vector signal analyzer (VSA) for transmitter verification with MELM
- Simulates the radio network, including country and mobile network codes
- The (DAU) establishes the IP connection via the IP configuration
| RF connectors (front panel) | SnapN female, 50 Ω, compatible with N female connectors |
|---|---|
| LAN | Ethernet RJ-45 connector, 1000 Mbps |
| Remote control interfaces (rear panel) | CMW-B612A IEEE bus (single) interface option: IEC 60625-2 (IEEE 488.2),24-pin Amphenol connector CMW-B612B IEEE bus (dual) interface option: 2 x IEC 60625-2 (IEEE 488.2),24-pin Amphenol connector |
| LAN remote | Ethernet RJ-45 connector, 1000 Mbps |
| USB remote | USB 2.0 type B connector |
| Further interfaces (front panel) | USB for keyboard, mouse, USB stick: 3 x USB 2.0 type A connector Sensor: for Rohde & Schwarz NRP-Zxx power sensors |
| Operating temperature | 5 °C to 45 °C |
| Storage temperature | -25 °C to 60 °C |
| Damp heat | +40 °C, 80 % rel. humidity, steady state,in line with EN 60068-2-78 |
| Electromagnetic compatibility | EN 61326-1 (industrial environment) EN 61326-2-1 EN 55011 (class A) |
| Electrical safety | EN 61010-1, UL 61010-1, CAN C22.2 No. 61010.1 |
| Vibration | Sinusoidal: 5 Hz to 55Hz, 0.3 mm double amplitude const., 55 Hz to 150 Hz, 0.5 g const.,in line with EN 60068-2-6 Random: 10 Hz to 300 Hz, acceleration 1.2 g RMS, in line with EN 60068-2-64 |
| Shock | 40 g shock spectrum,in line with MIL-STD-810, |
| Input power | 100 V to 240 V AC (± 10 %) |
| Rated frequency | 50 Hz to 60 Hz (± 5 %) |
| Dimensions | (18.31 x 7.77 x 20.35)in. |
| Weight | 40 lb (with typical options) |
| More information... | For complete specifications see: Rohde & Schwarz CMW500 Data Sheet |
