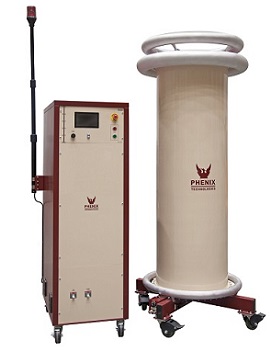

Phenix BK300 Aerial Lift/Bucket Truck Tester
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- This 300 kV Aerial Lift Tester can do periodic tests of category A & B devices up to 345 kV voltage class. It features a full-color touch-screen display, motorized control of the output voltage, and TCP/IP Protocol for Data Acquisition.
Key features
- Full-color touch-screen display
- Motorized control of output voltage
- Maximum Voltage Reached Memory Indicator
- TCP/IP Protocol for Data Acquisition
- Adjustable ramp rate of rise in V/s
| Electrical specifications | |
| Input power | 208 to 240 V, 60 A |
| Input frequency | 50/60 Hz |
| Output voltage | 0 to 300 kV |
| Max output current | 60 mA |
| Duty cycle | 5 min ON/30 min OFF, 60 mA |
| Metering accuracy | 0.8% of reading + 0.2% of range |
| Voltmeter range | 0 to 300.0 kV |
| Current meter ranges | 0 to 60 mA, 0 to 300 μA |
| Partial discharge | < 15 pC at 300 kV |
| Cables included | Input power: Optional Power interconnect: Optional Meter interconnect: 20 ft (6 m) Ground: 30 ft (9 m) Return: 30 ft (9 m) |
| Physical specifications | |
| Control section | Dimensions: (L 32 x W 23 x H 68)in (813 x 584 x 1727)mm Weight: 550 lbs (250 kg) |
| High voltage tank | Dimensions: (D 30 x H 89)in (762 x 2260)mm Weight: 1800 lbs (816 kg) |
| Operating temperature | 10 to 40 °C, indoor/outdoor in fair weather |
| Humidity (operating) | < 95% non-condensing |
| Altitude | < 3300 ft (1000 meters) |
| For detailed specifications please see: Phenix BK300 Data Sheet | |
