High Voltage model PFT-1003CM AC Hipot Tester

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up to make sure that your testing is going as planned!

High Voltage model PFT-1003CM AC Hipot Tester
  • Features & specifications

  • 100kV AC Hipot Tester
  • Tests switchgear, transformers, vacuum interrupters, motors, etc.

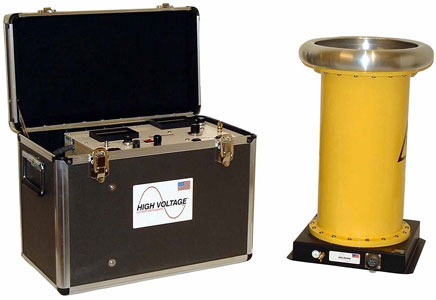

  • Comprises two separate units, the Control Panel and the HV Tank
  • Input is 120V, 60Hz, 15 amps or 230V, 50/60Hz, 8 amps
  • Kilovoltmeter 3.5", scaled to 50/100kVac +/-2% of full scale
  • Shipping weight is 162 lbs

Specifications
Input 120 V, 60 Hz, 15A, or 230 V, 50/60 Hz, 8A
HV Output 0-100 kVac, 1 kVA resistive load
3 kVA capacitive load
Up to 30 mA current
No Load Current 2.0 mA
NB: 3 kVA output power is only available with a capacitive load sized to draw 3 kVA at full rated output. Available output current decreases with other loads
Output Termination TOP Toroid
(No output cable)
Duty 3kVA: 1 hour ON, 1 hour OFF
1kVA: continuous
Distortion < 5%
Meter accuracy 2% of full scale
Kilovolt Meter 3.5 inch
Scaled 0-50/100 kVac
Current Meter 3.5 inch
Scaled 0-1.0 mAac, with x1, x10, x100 Range Multiplier
Control dimensions 21"W x 11.25"D x 15.25"H
533 mm W x 286 mm D x 387 mm H
HV Tank dimensions 13"W x 13"D x 22"H
330 mm W x 330 mm D x 559 mm H
Weight Control: 35 lbs (16kg)
HV Tank: 85 lbs (39kg)
