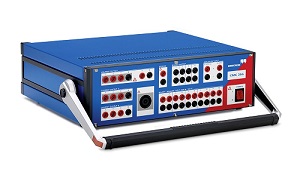

Omicron Electronics CMC 356 Universal 3-Phase Relay Test Set
  • Application

  • The CMC 356 tests all generations and types of protection relays. It is capable of testing high-burden electromechanical relays with very high power demands.
  • Key Features

  • High current amplitudes for 5 A relay testing
  • Powerful current sources to test high-burden electromechanical relays
  • High accuracy for testing all types of static and numerical relays
  • Primary injection capabilities for commissioning tasks
  • Test Universe software for manual and automated testing

Characteristics
Protection Relay Test Set High-burden electromechanical relays
Static relays
Numerical relays
IEC 61850 IEDs (GOOSE and Sampled Values)
Relay panels
End-to-End testing with GPS or IRIG-B
Busbar protection (up to 22 signal generators)
Power System Simulator Transient fault simulation
Power swing
CT saturation simulation
CB simulation
Rogowski coil simulation
Compensated network
Transient playback (COMTRADE, PL4 (EMTP), ...)
Programmable Voltage and Current Source Research & development
Production quality assurance
Universal Tool for Substation Commissioning Checking SCADA annunciations
Burden measurement
CT/VT polarity checker
Wiring checker
Plausibility check for CT/VT with primary injection
Portable 10-Channel Measurement Device (optional) Transient recording (trigger: binary, PQ, GPS)
Multimeter for: I, V, f, S, P, Q, cos φ ...
Trend recording for: I, V, f, S, P, Q
Harmonics analysis
