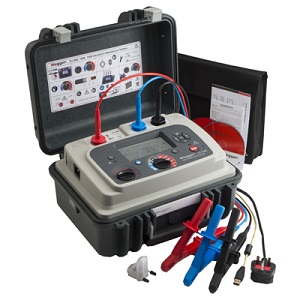

Megger S1-1568 Insulation Resistance Tester

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up to make sure that your testing is going smoothly!

Megger S1-1568 Insulation Resistance Tester
  • Features & specifications

  • Resistance measurement: 35 TΩ
  • High current - 6 mA short circuit current
  • High noise immunity - 8 mA of noise rejection
  • Four software filters: 10s, 30s, 100s, 200s
  • Remote operation via USB cable
  • Download of memory via isolated USB cable or Bluetooth
  • Large LCD display with backlight
  • Dedicated voltmeter function (30 V to 660 V) AC or DC
  • PowerDB Lite asset management software

AC Voltage input range 90 to 264 V rms, 50/60 Hz, 100VA
Battery (2 batteries) 1.1 V, 5.2Ah meets IEC 62133:2003
Battery life 4.5 hours (typical) continuous testing at 15 kV with a 100 MΩ load
Battery charge time 2.5 hours deep discharge, 2 hours normal discharge
30 min quick charge 1 hour operation at 5 kV with a 100 MΩ load
Resistance range 10 kΩ to 15 TΩ @ 5 kV, 10 kΩ to 35 TΩ @ 10 kV, 10 kΩ to 35 TΩ @ 15 kV
Analog display range 100 kΩ to 10 TΩ
Digital display range 100 kΩ to 35 TΩ
Timer range Up to 99 minutes 59 seconds, 15 second minimum setting
Memory capacity 11 hrs logging @ 5 sec intervals
Test modes IR, IR(t), DAR, PI, SV, DD, ramp test
Interfaces USB type B (device), Bluetooth® Class 2
Real time output (V, I, R) readings at a rate of 1 Hz
Remote control Remote control via USB cable only (requires RC dongle to be in position)
Altitude 4000 m
Operating temperature -20 °C to 50 °C
Ingress protection IP65 (lid closed), IP40 (lid open)
Safety Meets the requirements of IEC 61010-1 CATIV 1000 V to 4000 m
EMC Meets the requirements of IEC61326-1
Dimensions 305 mm x 194 mm x 360 mm
Weight 6.5 kg
