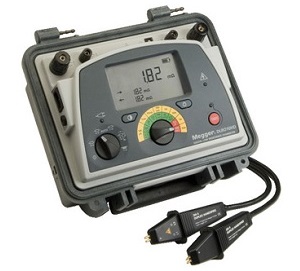

Megger DLRO10HD Digital Low Resistance Ohmmeter
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The DLRO10HD measures low resistance values in applications ranging from railways and aircraft to resistance of components in industry. It also does inductive measurements on electric motors and generators.
Key Features
- The unit is powered from either its rechargeable battery or line power
- High or low output power selection for condition diagnosis
- Heavy duty case: IP65 lid closed, IP54 operational (battery operation)
- 10 A for 60 seconds with less time waiting to cool
- High input protection to 600 V
| Temperature Coefficient | < 0.01% per °C, from 5 °C to 40 °C |
|---|---|
| Maximum Altitude | 2000m (6562 ft) to full safety specifications |
| Display size/type | Main 5 digit plus 2 x 5 digit secondary displays |
| Battery type | 6 V, 7Ah sealed lead acid |
| Voltage input range | 90 to 264 V, 50-60 Hz |
| Charge time | 8 hours |
| Backlight | LED backlight |
| Battery life | 1000 Auto (3 sec) tests |
| Auto power down | 300s |
| Mode Selection | Rotary switch |
| Range Selection | Rotary switch |
| Range | 6.7 kg |
| Case dimensions | (L)315mm x (W)285mm x (H)181mm |
| Pouch for test leads | Yes (lid mounted) |
| Test Leads | DH4 lead set included |
| IP rating | IP65 case closed, IP54 battery operation |
| Safety rating | In accordance with IEC61010-1, CATIII 300 V when used with DH7 leads |
| Operating temperature and humidity | -10 °C to 50 °C (14 °F to 122 °F) < 90% RH |
| Reference conditions | 20 °C ±3 °C |
| Storage temperature and humidity | -25 °C to 60 °C, < 90% RH |
| EMC | In accordance with IEC61326-1 (Heavy industrial) |
| Noise rejection | Less than 1% ±20 digits additional error with 100 mV peak 50/60 Hz on the potential leads. Warning will show if hum or noise exceeds this level |
