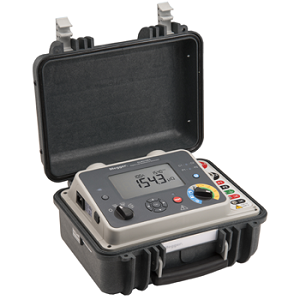

Megger DLRO 100 Series Digital Microhmmeters

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up to make sure that your testing is going smoothly!

Megger DLRO 100 Series Digital Microhmmeters
  • Application

  • The Megger DLRO 100 Series Digital Microhmmeter with the Li-ion fast charge battery option, enables low resistance measurement, across multiple applications, in areas without access to AC power.
  • Key Features

  • CAT IV 600 VAC / 500 VDC for safe operation
  • Lightweight 100 A battery powered unit for portability
  • High noise immunity for stable readings
  • Smooth DC Output for circuit breaker testing
  • IP54 for protection against dust and moisture

Specifications
Measurement range 0.1 μΩ to 1.999 Ω
Resolution 1 μΩ
Noise rejection Differential 100 mV at 50-60 Hz on Test Leads
DC output Smooth DC
IP rating IP54 Lid open / IP65 Lid closed
Operating temperature -20 °C to 50 °C
Storage temperature -30 °C to 70 °C
Humidity < 85% R.H. non-condensing
Battery life 200 single 100 A tests or up to 2 x 10 minutes continuous 100 A output
Battery type User replaceable Li-ion battery pack
Battery charge time Full charge in 2.5 hours (from dead)
Maximum output voltage 2 V(battery), 3 V(AC)
EMC IEC61326-1
Safety EC61010
CAT IV 600 VAC / 500 VDC up to 2000 m
CAT IV 300 V up to 4000 m
Dimensions 400 x 300 x 200 mm
Weight 7.0 kg (AC Only)
7.9 kg (with Battery)
