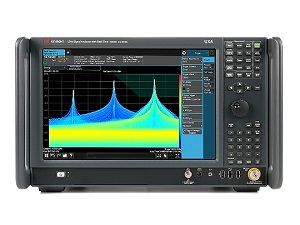

Keysight N9040B UXA Signal Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The powerful Keysight N9040B UXA Signal Analyzer allows you to analyze today’s most challenging signals such as wideband, transient-in 5G, 802.11ax/ay, satellite, radar, EW and more.
Key features
- Detect signals as short as 3.51 μs using real-time spectrum analysis
- Analyze bandwidth-hungry standards such as 5G and automotive radar
- Analyze real-world environments with gap-free streaming up to 255 MHz
- Diagnose subtle design issues in LOs and frequency synthesizers
| Option | Frequency range DC coupled |
Frequency range AC coupled |
|---|---|---|
| Option 508 | 2 Hz to 8.4 GHz | 10 MHz to 8.4 GHz |
| Option 513 | 2 Hz to 13.6 GHz | 10 MHz to 13.6 GHz |
| Option 526 | 2 Hz to 26.5 GHz | 10 MHz to 26.5 GHz |
| Option 544 | 2 Hz to 44 GHz | NA |
| Option 550 | 2 Hz to 50 GHz | NA |
| Frequency band | LO multiple (N) | Frequency range |
| 0 | 1 | 2 Hz to 3.6 GHz |
| 1 | 1 | 3.5 GHz to 8.4 GHz |
| 2 | 2 | 8.3 GHz to 13.6 GHz |
| 3 | 2 | 13.5 GHz to 17.1 GHz |
| 4 | 4 | 17 GHz to 26.5 GHz |
| 5 | 4 | 26.4 GHz to 34.5 GHz |
| 6 | 8 | 34.4 GHz to 50 GHz |
| For detailed specifications please see: Keysight N9040B Data Sheet | ||
