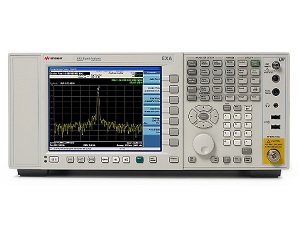

Keysight N9010A EXA Signal Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight N9010A EXA Signal Analyzer can measure the smallest signals in the presence of large ones with best-in-class level accuracy, DANL & TOI. Testing noise figure, wireless communications, phase noise, and more is simplified with X-Series apps.
Key features
- The fast and flexible EXA serves diverse needs with a single tool
- The most cost-effective analysis for millimeter-wave measurements
- List-sweep mode does fast measurements at discrete frequency points
- Simplify measurements such as phase noise with X-Series apps
| Cellular Applications | 1xEV-DO cdma2000 cdmaOne GSM/EDGE/EDGE Evolution iDEN/WiDEN/MotoTalk TD-SCDMA with HSDPA/HSUPA/8PSK LTE/LTE-Advanced W-CDMA/HSPA/HSPA+ |
|---|---|
| Wireless Connectivity Applications | 802.16 OFDMA WLAN (802.11a/b/g/p/j/n/ac/ah/ax) Bluetooth® (BR/EDR/LE4.2/5.0) |
| Digital Video Applications | Digital Cable TV DTM B ISDB-T/Tmm DVB-T/H/T2/T2-Lite |
| General Purpose Applications | 89600 VSA Software Analog Demodulation EMI Precompliance Flexible Digital Modulation Analysis MATLAB Noise Figure Phase Noise Pulse Remote Language Compatibility SCPI Code Compatibility Stimulus Response |
| Frequency | 10 Hz to 44 GHz |
|---|---|
| Frequency Options | 3.6, 7, 13.6, 26.5, 32, 44 GHz, Mixers to 1.1 THz |
| Maximum Analysis Bandwidth | 40 MHz |
| Bandwidth Options | 25 standard, 40 MHz |
| Maximum Real-Time Bandwidth | n/a |
| Real-Time Bandwidth Options | n/a |
| DANL @1 GHz | -170 dBm |
| Phase Noise @1 GHz (10 kHz offset) | -109 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | -109 dBc/Hz |
| Phase Noise @1 GHz (1 MHz offset) | -136 dBc/Hz |
| Overall Amplitude Accuracy | ±0.27 dB |
| TOI @1 GHz (3rd Order Intercept) | +18 dBm |
| Maximum Dynamic Range 3rd Order @1 GHz | 112 dB |
| Option | Frequency range DC coupled |
Frequency range AC coupled |
|---|---|---|
| Option 503 | 10 Hz to 3.6 GHz | 10 MHz to 3.6 GHz |
| Option 507 | 10 Hz to 7 GHz | 10 MHz to 7 GHz |
| Option 513 | 10 Hz to 13.6 GHz | 10 MHz to 13.6 GHz |
| Option 526 | 10 Hz to 26.5 GHz | 10 MHz to 26.5 GHz |
| Option 532 | 10 Hz to 32 GHz | N/A |
| Option 544 | 10 Hz to 50 GHz | N/A |
| Frequency band | LO multiple (N) | Frequency range |
| 0 | 1 | 10 Hz to 3.6 GHz |
| 1 | 1 | 3.5 GHz to 7 GHz |
| 1 | 1 | 3.5 GHz to 8.4 GHz |
| 2 | 2 | 8.4 GHz to 13.6 GHz |
| 3 | 2 | 13.5 GHz to 17.1 GHz |
| 4 | 4 | 17 GHz to 26.5 GHz |
| 5 | 4 | 26.4 GHz to 34.5 GHz |
| 6 | 8 | 34.4 GHz to 44 GHz |
