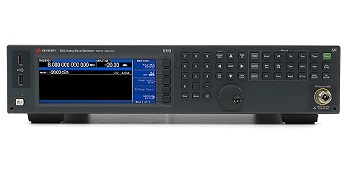

Keysight N5171B Analog Signal Generator
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight EXG X-Series are optimized for manufacturing test. The analog N5171B and the vector N5172B provide the signals needed for basic parametric testing of components and functional verification of receivers.
Key features
- 9 kHz to 1, 3, or 6 GHz
- Resolution 0.001 Hz
- Phase offset is adjustable in 0.1° increments
- GPIB, LAN, and USB interfaces
| Frequency ranges | Option 501: 9 kHz to 1 GHz Option 503: 9 kHz to 3 GHz Option 506: 9 kHz to 6 GHz |
|---|---|
| Resolution | 0.001 Hz |
| Phase offset | Adjustable in nominal 0.1° increments |
| Frequency bands | Band 1: 5 MHz to < 250 MHz Band 2: 250 MHz to < 375 MHz Band 3: 375 MHz to < 750 MHz Band 4: 750 MHz to < 1500 MHz Band 5: 1500 MHz to < 3000.001 MHz Band 6: 3000.001 MHz to 6000 MHz |
| Reference output | Frequency: 10 MHz Amplitude: ≥ +4 dBm, nominal into 50 Ω load |
| External reference input | Input frequency, standard: 10 MHz Input frequency, Option 1ER: 1 to 50 MHz (in multiples of 0.1 Hz) Stability: Follows the stability of external reference input signal Lock range: ± 1 ppm Amplitude: > -3.0 to 20 dBm, nominal Impedance: 50 Ω, nominal Waveform: Sine or square |
| Sweep range | Within instrument frequency range |
| Dwell time | 100 μ s to 100 s |
| Number of points | 2 to 65535 (step sweep) 1 to 3201 (list sweep) |
| Step change | Linear or logarithmic |
| Triggering | Free run, trigger key, external, timer, bus (GPIB, LAN, USB) |
| For detailed specifications please see: Keysight N5171B Data Sheet | |
