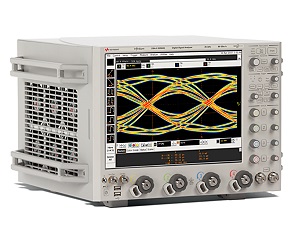

Keysight DSAX93304Q Digital Serial Analyzer
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight Q-Series Oscilloscopes allow the user to see the fastest signals as they really are and to answer the "what" and "why" questions at the extremes of electrical and optical measurements.
Key features
- Real-time bandwidth: 33 GHz on 2 CH and on 4 CH
- Memory depth is 50M standard; 2 Gpts maximum
- Maximum sampling rate: 80 GSa/s on 2 and 4 channels
- Bandwidth is upgradeable up to 63 GHz
- Internal hard drive ≥ 250 GB
| Technical characteristics | |
| Typical analog bandwidth (3 dB) | 33 GHz |
| Sample rate | 2-channel: 80 GSa/s 4-channel: 80 GSa/s |
| Memory depth | Standard: 50M Maximum: 2 Gpts |
| Input impedance | 50 Ω ± 3% |
| Sensitivity | 1 mV/div to 1 V/div |
| Input coupling | DC |
| Vertical resolution | 8 bits, ≥ 12 bits with averaging |
| DC gain accuracy | ± 2% of full scale at full resolution channel scale (± 2.5% for 5 mV/div) |
| Maximum input voltage | ± 5 V for steady state and transient measurements |
| Dynamic range | ± 4 div from center screen |
| Display characteristics | |
| Display | 15.4-inch color XGA TFT-LCD with touch screen |
| Intensity grayscale | 256 level intensity graded display |
| Resolution XGA | 1024 pixels horizontally x 768 pixels vertically |
| Annotation | Up to 12 labels, with up to 100 characters each, can be inserted into the waveform area |
| Grids | Choose 1, 2, 4, 8, or 16 grids, each with 8 bit vertical resolution |
| Waveform styles | Connected dots, dots, infinite persistence, color graded infinite persistence. Includes up to 256 levels of intensity-graded waveforms, variable persistence |
| General characteristics | |
| Temperature | Operating: +5 %C to +40 %C Non-operating: -40 %C to +65 %C |
| Humidity | Operating: Up to 95% relative humidity (non-condensing) at +40 °C Non-operating: Up to 90% relative humidity at +65 °C |
| Altitude | Operating: Up to 4,000 meters (12,000 feet) Non-operating: Up to 15,300 meters (50,000 feet) |
| Power | 100 to 240 VAC ± 10% at 50/60 Hz Maximum input power 1350 W Typical input power: 1200 W |
| Dimensions | Height: 33.8 cm (13.3 in) Width: 50.8 cm (20 in) Depth: 49.3 cm (19.4 in) |
| Weight | 71 lbs (32.2 kg) |
| Safety | Meets IEC 61010-1 +A2, CSA certified to C22.2 No.1010.1, self-certified to UL 3111 |
| For detailed specifications please see: Keysight DSAX93304Q Data Sheet | |
