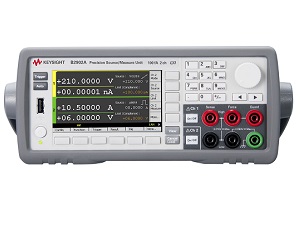

Keysight B2900A Series Precision SMUs
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight B2900A Series of Precision SMUs are bench-top instruments with the capability to source and measure both voltage and current. These capabilities make the B2900A Series ideal for a wide variety of IV measurement tasks that require high resolution and accuracy.
Key features
- Integrated 4-quadrant sourcing and measuring capabilities
- Measurement range: ± 210 V, ± 3 A (DC), ± 10.5 A (pulsed)
- Source and measurement resolution down to 10 fA and 100 nV
- 10 microsecond digitizing capability
| Required testing scenario | Suggested Options/Applications |
|---|---|
| Internet of Things (IoT) - EMC | n/a |
| Internet of Things (IoT) - Wireless Standards Compliance | n/a |
| Internet of Things (IoT) - Power Management | The Keysight B2900A Series Precision SMUs are well suited for power management testing situations. No additional options or applications are required. |
| Internet of Things (IoT) - Signal & Power Integrity | n/a |
| Model/Description | Main features |
|---|---|
| B2901A Precision SMU | 1 channel, 100 fA, 210 V, 3 A DC/10.5 A pulse |
| B2902A Precision SMU | 2 channel, 100 fA, 210 V, 3 A DC/10.5 A pulse |
| B2911A Precision SMU | 1 channel, 10 fA, 210 V, 3 A DC/10.5 A pulse |
| B2912A Precision SMU | 2 channel, 10 fA, 210 V, 3 A DC/10.5 A pulse |
| Operating temperature | 0 °C to +55 °C, 30% to 80% non-condensing |
|---|---|
| Storage temperature | -30 °C to 70 °C, 10% to 90% non-condensing |
| Altitude | Operating: 0 m to 2000 m, Storage: 0 m to 4600 m |
| Power supply | 90 V to 264 V, 47 Hz to 63 Hz, 250 VA maximum |
| EMC | IEC61326-1/EN61326-1, AS/NZS CISPR 11, KC: RRA Notification amending Radio Waves Act Article 58-2 |
| Safety | IEC61010-1/EN61010-1, CAN/CSA-C22.2 No. 61010-1-04, C/US |
| Certifications | CE, cCSAus, C-Tick, KC |
| Dimensions | Case88 mm (2U) x 213 mm (half width) x 450 mm 180 mm x 260 mm x 480 mm (with handle & feet) |
| Weight | 5.1 kg (B2901A, B2911A), 6.5 kg (B2902A, B2912A) |
| Shipping weight | 7.6 kg (B2901A, B2911A), 9.0 kg (B2902A, B2912A) |
| Accessories | Banana - Triax adapter for 2-wire (non Kelvin) connection Banana - Triax adapter for 4-wire (Kelvin) connection Interlock cable for 16442B (1.5 m) Interlock cable for 16442B (3.0 m) GPIO-BNC trigger adapter Digital I/O trigger cable for multiple unit control Low leakage triax cable (1.5 m) Low leakage triax cable (3.0 m) Low leakage triax cable (4.0 m) Rack Mount Kit |
