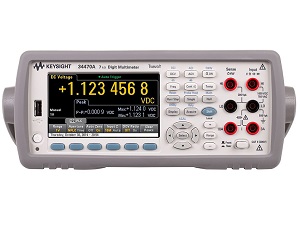

Keysight 34470A Digital Multimeter
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Keysight 34470A Digital Multimeter with BenchVue PC software makes it simple to visualize multiple measurements simultaneously, easily log data, screen shots and system state, and monitor and control the bench from mobile devices.
Key features
- Measure with confidence, with high basic DCV accuracy of 16 ppm
- Test low power devices with 1 μA range and pA resolution
- Speed up testing with Keysight BenchVue – no programming required
- Digitizing and advanced triggering (DIG) now included
| Required testing scenario | Suggested Options/Applications |
|---|---|
| IoT - Signal & Power Integrity | The Keysight BenchVue software is recommended along with the Keysight 34470A. |
| Internet of Things (IoT) - EMC | n/a |
| IoT - Wireless Standards Compliance | n/a |
| IoT - Power Management | n/a |
| Key specifications | |
|---|---|
| Digits of resolution | 7½ |
| Basic DCV accuracy | 16 ppm |
| Max reading rate | 50,000 rdgs/s |
| Memory | 50,000 rdgs std 2 million rdgs opt |
| Measurements | |
| DCV | 100 mV to 1,000 V |
| ACV (RMS) | 100 mV to 750 V |
| DCI | 1 μA to 10 A |
| ACI | 100 μA to 10 A |
| 2 and 4-wier resistance | 100 Ω to 1,000 MΩ |
| Continuity, diode | Y, 5 V |
| Frequency, period | 3 Hz to 300 kHz |
| Temperature | RTD/PT100, thermistor, thermocouples |
| Capacitance | 1.0 nF to 100.0 μF |
| Dual line display | Yes |
| Display | Color, graphical |
| Statistical graphics | Histogram, bar chart, trend chart |
| Rear input terminals | Yes |
| IO Interface | |
| USB | Yes |
| LAN/LXI Core | Yes |
| GPIB | Optiona |
| Physical/Environmental | |
| Operating environment | Full accuracy for 0 °C to 55 °C |
| Dimensions | Bench dimensions: (W x H x D): 261.2 mm x 103.8 mm x 303.2 mm Rack dimensions: (W x H x D): 212.8 mm x 88.3 mm x 272.3 mm |
| Weight | 3.76 kg (8.3 lb) |
| Accessories | 34138A test lead set with probes, fine tip probes, SMT grabbers and mini grabber attachments, Power cord, IO Libraries CD, USB cable, Calibration certificate. |
