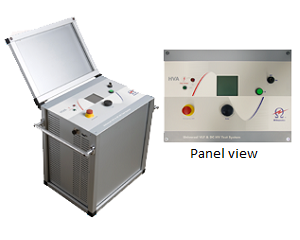

HV Diagnostics HVA60 VLF and DC Hipot Tester

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up to make sure that your testing is going smoothly!

HV Diagnostics HVA60 VLF and DC Hipot Tester
  • Features & specifications

  • Single piece design, weighs only 126 lbs
  • VLF 44kVrms / 62kVpk output, DC ±60kV
  • Test MV Cable systems up to 35kV
  • Perform tests fully automatically
  • Real time oscilloscope display
  • User friendly software for professional reporting and setup
  • Tests MV cables, Vacuum bottles, cable jackets/sheaths, rotating machines, transformers, switchgear
  • Remote interlock kill switch and HV status indication
  • 12kV power frequency voltage feedback protection

Technical Specifications
Power Supply/Input Voltage 110 to 240V AC ±10% (50/60Hz)
Input Power Requirements 1.2kVA
Rated Max Output Voltage Sinusoidal RMS/Peak: 44kV/62kV
Squarewave: 60kV
DC: ±60kV
Rate Max Output Current Sinusoidal RMS: 26mA
DC/Squarewave: 40mA
Output Frequency (default 0.1Hz) 0.01Hz to 0.1Hz adjustable small increment of 0.01Hz (10 frequencies)
Frequency Optimization Yes
Maximum Output Load Capability @ maximum voltage and frequency 1μF
10,000 ft (3km)
Maximum Output Load Capability @ Reduced Frequency and / or voltage 5μF
50,000 ft (15 km)
Metering Voltage: 0.1kV Resolution ±1% Accuracy
Current: 1 μA Resolution ±1% Accuracy
Capacitance: 0.1 nF to 20 μF Range
Resistance: 0.1MΩ to 20GΩ Range
Timing: Included and integrated
Fast Arc/Flashover: Detection Included and Integrated
Waveform: Real time oscilloscope display of actual output voltage waveform
Output Mode (all load independent & symmetrical): VLF AC Sinewave
VLF AC Squarewave
DC (both Positive and Negative Polarity)
Fault Condition Mode / Fault Trip Mode
Vacuum Bottle Test Mode (DC) - optional
Cable Jacket / Sheath Test Mode
Output Duty Continuous
Computer Interface RS232 Standard, USB Flash Memory Download Module (optional)
HVA Contol Center Software included with every HVA instrument
Memory / Test Record Storage Built in Memory: 50 Test Records
USB Flash Drive: Unlimited (see options)
No. of programmable Automatic Test Sequences 40
Standard HV Test Lead Cable Included 15ft/4.5m
Weight 126 lbs/57kg
Dimensions (18 x 13.5 x 20.5)in, (450 x 340 x 520)mm
Environmental Storage: -13°F to 158°F / -25°C to 70°C
Operating: 23°F to 113°F / -5°C to +45°C
Humidity: 85% RH non-condensing
