DILO 3-038R-R303 Zero-Emission SF6 Gas Analyzer

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up to make sure that your testing is going smoothly!

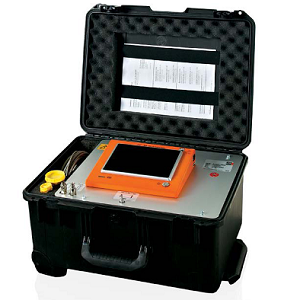

DILO 3-038R-R303 Zero-Emission SF6 Gas Analyzer
  • Application

  • The DILO 3-038R-R303 Zero-Emission SF6 Gas Analyzer is a very accurate, battery operated, compact, user and maintenance-friendly device. It allows users to determine whether SF6 contaminant levels exceed the value established by equipment manufacturers and/or national standards organizations.
  • Key Features

  • Field-replaceable sensors
  • Data storage for up to 500 tests
  • Zero-Emission gas testing principle
  • Intuitive 7 in. color touch panel interface
  • Llightweight with battery or supply operation

Specifications: Sensor Data
Volume % Moisture SO2
Measuring principle Velocity of sound Dry out method (capacitive) Electrochemical reaction
Measuring range 0 to 100 vol-% -60 to 20 °C 0 to 500 ppmv
Measuring accuracy ± 0.5 vol.-% ± 2 °C (at > -40 °C)
± 3 °C (at < -40 °C)
< ± 2 % of measuring range
Reaction time < 1 min < 1 min < 20 sec

General specifications
Input pressure 4 to 507 psig (pe 0.3 to 35 bar)
Operating temperature 14 °F to 122 °F
Operating voltage 100 to 240 V / 50 to 60 Hz, or battery operation
Optional accessories In-Line compressor for low pressure environments (pressures < 5 psig)
Analyzer Discharge Recovery Bag
Analyzer adapter kit
20 ft. (6m) long connecting hose with self-closing couplings (extension hose)
Refilling device with analyzer quick-disconnect fitting
Dimensions (L 16 x W 21 x H 10.5)in.
Weight 55 lbs
