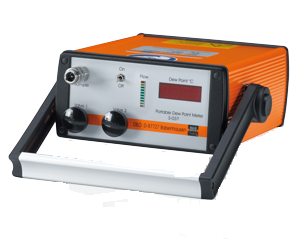

DILO 3-037-R002 Moisture Analyzer

No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up to make sure that your testing is going smoothly!

  • Application

  • The DILO 3-037-R002 Moisture Analyzer has been designed specially for SF6 moisture measurements. It shows a higher resistance against contamination and SF6 decomposition products than conventional moisture sensors and even minimises the usual long time drifting.
  • Key Features

  • Works independently of the position of the gas sample
  • Measurement is possible under atmospheric or plant pressure
  • Excludes pressure and temperature influences on the measurement
  • Indication in °C dew point, quick conversion into ppm values
  • Mains operation or operation by NiMH accumulators

Specifications
Measuring principle Electronic moisture measurement (capacitive)
Measuring range -70 to 20 °C dew point
Measuring accuracy ±2 °C (from -40 to 20 °C), ± 4 °C (from -60 to -40 °C)
Input pressure pe 0.5 to 10 bar
Operating temperature 0 to 50 °C
Ambient moisture Up to 90 % relative moisture, non condensing during operation
Operating voltage 100 to 240 V / 50 to 60 Hz
Standard equipment Moisture measuring device with digital display
2 precise regulating valves and electronic flowmeter
NiMH batteries (battery charger is integrated)
2 m long connecting hose with couplings DN8 and DN20
Robust housing with handle for placing and transportation
2 m long connecting cable with mains plug
Black plastic transport case
1 operating manual (multilingual) on CD-ROM
Optional Discharge gas collecting bag (for emission-free measurement)
Dimensions W 210 mm, H 85 mm, D 250 mm, without handle
Weight 2.8 kg
