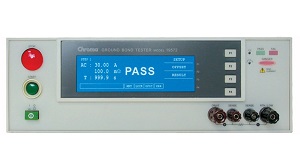

Chroma 19572 Guardian Ground Bond Tester
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Chroma Guardian 19572 is dedicated to measuring grounding resistance within the range of 0.1 ∼ 510 mΩ. Its compact form factor and easy to operate feature set is well suited for testing in a production line.
Key features
- Resistance measurement range: 0.1 ∼ 510 mΩ
- High performance AC current output: 45 A
- Provide reliable and stable test results
- Built-in resistance compensation function
- Standard RS-232 interface, GPIB optional
| Grounding Resistance Test | |
|---|---|
| Output Current | AC: 3 ∼ 45 |
| Load Regulation | 1% + 0.3 A |
| Resolution | 3 ∼ 30A: 0.01A 30.1 ∼ 45A: 0.1A |
| Current Accuracy | ± (1.5% of setting + 0.5% of full scale) |
| Output Frequency | 50 Hz/60 Hz |
| Resistance range | 0.1 ∼ 510 mΩ |
| Resistance Resolution | (R display counts/I display counts)≥ 0.2,Resolution: 1 mΩ (R display counts/I display counts) < 0.2, Resolution: 0.1 mΩ |
| Resistance Accuracy | ± (2% of reading + 0.5% of full scale) |
| Offset | A predetermined value can be subtracted from the measured value and the result can be displayed The result of the subtraction can be compared with a Good/NO Good judgment reference value, and the result of the comparison can be used for the Good/NO Good judgment |
| Offset Range | 0 ∼ 100.0 mΩ |
| Test time | 0.5 ∼ 999.0 sec., continuous |
| Waveform | Sine wave |
| GO/NG Judgement | |
| GO/NG Conditions | A no-good judgment is made when a resistance greater than the high limit value Is detected A no-good judgment is made when the output current is cutout and a no-good Alarm signal is delivered If no abnormal state is detected during the test time, a good judgment is made and a good signal is deliver |
| Limits | HI-LIMIT: 0.1 ∼ 510.0mΩ LOW-LIMIT: OFF, 0.1mΩ ∼ HI- LIMIT Value 510.0mΩ MAX |
| General specifications | |
| Operation | Temperature: 0 °C ∼ 40°C ≤ 40% RH |
| Power consumption | No Load: < 100 VA Rated Load: < 880W MAX |
| Power requirements | AC 100V, 120V, 220V - 10%, 240V - 10% ∼ + 5% |
| Dimensions (W x H x D) | 12.6 x 4.13 x 15.75 in./(320 x 105 x 400)mm |
| Weight | < 35.2 lbs, < 16 kg |
| For detailed specifications please see: Chroma 19572 Data Sheet | |
