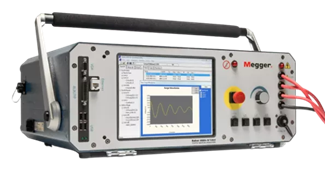

Baker AWA Series IV Advanced Winding Analyzer
  • Features & specifications

  • All test results can be saved and stored on the Baker AWA-IV
  • Results can also be backed up or copied to a server or a desktop PC
  • The analyzer can connect by wire or wirelessly to a LAN
  • Test results can be stored in relational databases like Microsoft Access
  • Stored results are easy to retrieve and generate reports for clients
  • We rent two versions: Baker AWA-IV/12 and Baker AWA-IV/12 HO
  • See specifications below for the differences between the AWA-IV/12 and the AWA-IV/12 HO

Surge Testing Specifications
Surge Test Baker AWA-IV/12 HO Baker AWA-IV/12
Output voltage 0 to 12,000 V 0 to 12,000 V
Max output current 800A 600A
Pulse energy 7.2J 2.88J
Storage capacitance 0.1 μF 0.04 μF
Sweep range 2.5 to 200 μs/div 2.5 to 200 μs/div
Volts division 250/500/1000/2000 250/500/1000/2000
Repetition rate 5 Hz 5 Hz
Voltage measurement & accuracy ± 12% ± 12%

Hipot Testing Specifications
DC Hipot Test Baker AWA-IV/12 HO Baker AWA-IV/12
Output voltage 0 to 12,000 V 0 to 12,000 V
Max output current 10,000 μA 5000 μA
Current resolution 0.1, 1, 10, 100 μA/div 0.1, 1, 10, 100 μA/div
Over-current trip settings (factor @ 0.8) 1, 10, 100, 1000 μA 1, 10, 100, 1000 μA
Full scale voltage and current measurement and accuracy ± 5 % ± 5 %
MΩ accuracy ± 10 % ± 10 %
Max MΩ reading >50000 MΩ >50000 MΩ

General Specifications
Baker AWA-IV/12 HO Baker AWA-IV/12
Power requirements 85 to 264 V AC 85 to 264 V AC
Resistance measurements 0.001 to 800 Ω 0.001 to 800 Ω
Dimensions, cm (inches) 40.6 x 20.3 x 53.3 (16 x 8 x 21) 40.6 x 20.3 x 53.3 (16 x 8 x 21)
Weight kg (lb) 22.7 kg (50 lb) 19 kg (42 lb)
Shipping weight 43.2 kg (95 lb) 40 kg (88 lb)
