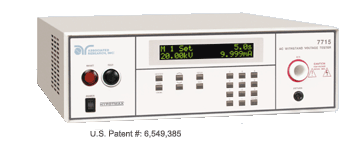

Associated Research 7715 AC Hipot Tester
No stress rentals! We help you to choose the equipment that you need, we expedite shipment, and follow up.
Application
- The Associated Research 7715 is an automated 20 kV AC Hipot Tester that is designed to meet the demanding requirements of high voltage applications with speed and safety.
Key features
- Automated 20 kV AC Hipot Tester
- Dielectric withstand mode is 20 kV at 10 mA AC
- Automate tests with PC or run using intuitive user interface
- Input: 115/230VAC ±10% user selectable
- SmartGFI feature ensures maximum operator safety
| Input specifications | |
| Voltage | 115/130 VAC ± 10%, Single Phase, User Selection |
| Frequency | 50/60 Hz ± 5% |
| Fuse | 6.3 A, 250 V Slow Blow |
| Dielectric Withstand Test Mode | |
| Output Rating | 20 kV at 10 mA AC |
| Maximum Limit | Range: 0.00 - 9.999 mA Resolution: 0.001 mA/step Accuracy: ± (2% of setting + 2 counts) |
| Arc Detection | Range: 1 - 9 at output voltage < 15.00 kV |
| Voltage Display | Range: 0.00 - 20.00 kV Full scale Accuracy: ± (2% of reading + 20 V) |
| Current Display (Auto Range) | Range 1: 0.000 mA - 3.500 mA Range 2: 3.00 mA - 10.00 mA |
| AC Output Waveform | Sine Wave, Crest Factor = 1.3 - 1.5 |
| Output Frequency | Range: 50 or 60 Hz, User Selectable ± (1% of output + 5 V) from Regulation No load to full load |
| Output Voltage Regulation | ± (1% of output + 10 V) from no load to full load |
| Dwell Timer | Range: AC 0, 0.3 - 999.9 sec or min (0 = Continuous) |
| Ramp Timer | Range: 0.3 - 999.9 sec |
| Ground Fault | HV Shut Down Speed < 1ms |
| Interrupt | GFI trip current 1 mA max |
| General Specifications | |
| Memory | 50 Memories w/8 steps per memory |
| Interface | Standard USB/RS-232. Optional GPIB |
| Mechanical | Tilt up feet |
| Dimensions | (W x H x D) 16.93 x 5.24 x 15.75 in., (430 x 133 x 400 mm) |
| Weight | 48.9 lbs (22 kgs) |
| Shipping weight | 60 lbs (27.22 kgs) |
| For detailed specifications please see: Associated Research 7715 Data Sheet | |
