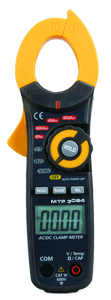

AC/DC Clamp Meter
MODEL: MTP-3094

MTP-3094 AC/DC Clamp Meter - Price: $150.00

400A AC/DC Clamp Meter Clamp opening 1.2" 4000 count digital LCD display Data Hold, REL (zero) functions Auto Power Off Price: $150.00 US dollars

SPECIFICATIONS: (23°C ± 5°C)
AC Current (50/60Hz):

Range	Resolution	Accuracy
40A	10mA	± (2.5% + 8 digits)
400A	0.1A	± (2.8% + 5 digits)

DC Current:

Range	Resolution	Accuracy
40A	10mA	± (2.5% + 5 digits)
400A	0.1A	± (2.8% + 5 digits)

DC Voltage: (Input Impedance 10MΩ)

Range	Resolution	Accuracy
400mV	0.1mV	± (0.8% + 2 digits)
4V	1mV	± (1.5% + 2 digits)
40V	10mV
400V	0.1V
600V	0.1V	± (2% + 2 digits)

AC Voltage: (Input Impedance 10MΩ, 50Hz to 400Hz)

Range	Resolution	Accuracy
4V	1mV	± (1.5% + 5 digits)
40V	10mV
400V	0.1V
600V	0.1V	± (2% + 5 digits)

Frequency (Sensitivity 15 V_rms):

Range	Resolution	Accuracy
10 Hz to 10 kHz	1Hz	± (1.5% + 2 digits)

Resistance:

Range	Resolution	Accuracy
400 Ω	0.1 Ω	± (1.0% + 4 digits)
4 KΩ	1 Ω	± (1.5% + 2 digits)
40 KΩ	10 Ω
400 KΩ	100 Ω
4 MΩ	1 KΩ	± (2.5% + 3 digits)
40 MΩ	10 KΩ	± (3.5% + 5 digits)

Capacitance:

Range	Resolution	Accuracy
40 nF	0.01 nF	± (4.0%rdg + 20 digits)
400 nF	0.1 nF	± (3%rdg + 5 digits)
4 μF	1 nF
40 μF	0.01 μF
100 μF	0.1 μF	± (4%rdg + 10 digits)

Temperature: (Type K) Probe accuracy not included

Range	Resolution	Accuracy
-20 °C to 760 °C	0.1 °C	± (3.0%rdg + 5 °C)
-4 °F to 1400 °F	0.1 °F	± (3.0%rdg + 9 °F)

General specifications:

Jaw opening	30mm (1.2")
Display	4000 counts LCD
Diode Test	Test current 0.3 mA typical; Open circuit voltage 1.5V DC typical
Continuity Check	Threshold < 150 Ω; Test Current < 0.5 mA
Overrange Indication	"OL" is displayed
Measurement Rate	2 per second, nominal
Input Impedance	10 MΩ (VDC and VAC)
Operating temperature	5°C to 40°C
Dimensions	200(L) x 66(W) x 37(H)mm, (7.8" x 2.6" x 1.5")
Weight	205g (batteries included), 7.2 oz
Accessories included	Instruction Manual, Batteries, Test Leads, Alligator Clips, Temperature Probe, Carrying Case
