DC Hipot Tester
MODEL: Hipotronics 815PL

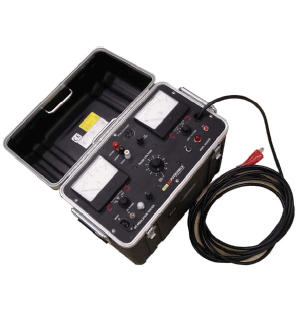

HIPOTRONICS 815PL 15kV DC Hipot Tester

Rugged, portable single-piece construction Shielded output cable Full-wave voltage doubling rectifier circuit Zero start interlock and guard circuit Internal discharge solenoid Meter Accuracy ± 2% full scale 10 mA current rating for cable charging External interlock provisions Three range voltmeter Four range current meter No internal leakage at full load Instantaneous overload relay Surge-limiting resistors in HV output

Specifications, Applications, & Benefits

Applications	DC Hipot testing of Cables, Transformers, Switchgear, Motors, Generators, and other Electrical Apparatus
Benefits	Ideal for field testing: A compact, lightweight and rugged instrument that is suitable for field oriented applications Operator Safety: The power supply and test object are automatically grounded when high voltage is turned off Simple to use: A minimal amount of setup time and a simple control panel allow easy testing every time Accuracy: A guard circuit that eliminated stray leakage currents ensures accurate leakage current measurements
Input Voltage	120 V, 50/60 Hz for model 815PL-A 230 V, 50/60 Hz for model 815PL-B
Output Voltage	0 to 15 kV
Output Current	5 mA
Polarity	Negative output, positive ground
Metering	± 2% full scale accuracy
Ripple	0.5% per mA with rated resistance
Dimensions	16.5"W X 9"D X 18"H (42 X 23 X 46)cm
Weight	Net weight: 49 lbs (22 kg) Shipping weight: 64 lbs (29 kg)
Included with 815PL	Input Line Cord, wire & plug, grounded type, 6 feet (1.8 m) Return Cable, 25 ft. (7.6 m) High Voltage Output Cable, shielded RG34/U with alligator clip and rubber insulated boot, 25 feet (7.6 m) Interlock Plug Calibration Certificate User's Manual

For a prompt quotation, please click on the button below or call (800) 268-4928, or (905) 667-3991.
