Anritsu: Model MT8222A BTS Master

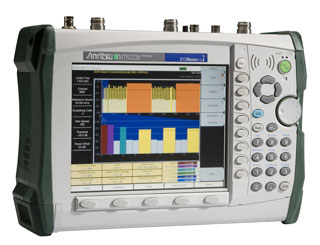

Anritsu MT8222A BTS Master

Overview

The BTS Master is an integrated multi functional base station test tool eliminating the need to carry and learn multiple test sets. Measurement capabilities include spectrum analysis, precision return loss, VSWR, cable loss, distance-to-fault, two port gain/loss, one port and two port magnitude and phase, interference analysis, and much more.

Key Features and Specifications

  • Spectrum Analyzer 100 kHz to 7.1 GHz
  • 2-Port Cable & Antenna Analyzer 10 MHz to 4 or 6 GHz
  • High Accuracy Power Meter ± 0.16 dB
  • Bit Error Rate Tester E1, T1, and T3
  • Interference Analyzer
  • Channel Scanner
  • PIM Analyzer
  • 2.5G Modulation options GSM/GPRS/EDGE, IS-95
  • 3G Modulation options W-CDMA/HSDPA, 1xrtt/EVDO and TD-SCDMA
  • 3.5G modulation options LTE, 802.16d and 802.16e
  • GPS Receiver option
