Anritsu: Model MS2724B Spectrum Analyzer

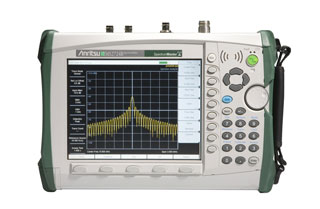

Anritsu MS2724B Spectrum Analyzer

Overview

The Anritsu MS2724B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 20 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.

Key Features and Specifications

  • Frequency Range: 9 kHz to 20 GHz (usable to 0 Hz)
  • Tuning resolution: 1 Hz
  • Frequency Span: 10 Hz to 20 GHz including zero span
  • Sweep time: 10 μsec to 600 sec in zero span, autoset in non-zero span
  • Resolution Bandwidth: 1 Hz to 3 MHz in 1-3 sequence ±10%
  • Video Bandwidth: 1 Hz to 3 MHz in 1-3 sequence
  • Phase Noise: -95 dBc/Hz at 10 kHz offset at 1 GHz
  • DANL: -159 dBm in 1 Hz RBW
  • Detectors: Peak, Negative, Sample, Quasi-Peak and True RMS
  • Internal Preamplifier standard
